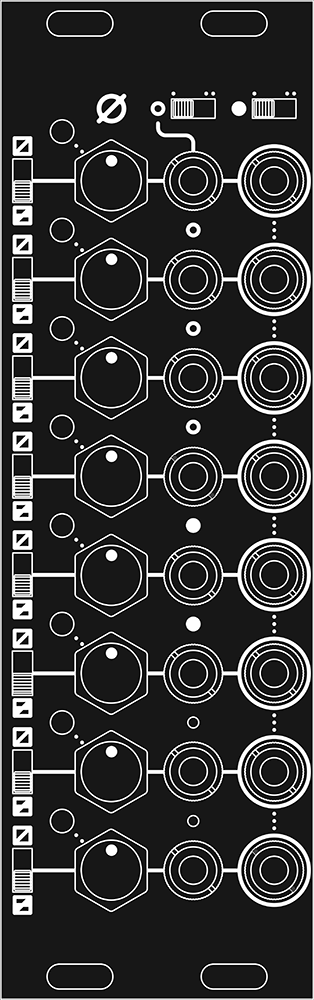

| Name: | Qty: | Value: | Index: | Specs: | Package: | Mouser reference: | Note: | |
|---|---|---|---|---|---|---|---|---|
| SMD parts: | ||||||||
| 1n5819 diode | 2 | D1 D2 | SOD-123 | 621-1N5819HW-F | ||||
| TL074 quad opamp | 10 | U1 U2 U3 U4 U5 U6 U7 U8 U10 U11 | TSSOP-14 | 595-TL074CPWR | ⚠Or LME49743 for better audio quality | |||
| LM4040C10 10V voltage reference | 1 | U9 | SOT23-3 | 595-LM4040C10IDBZR | ||||
| Capacitor | 8 | 22pF | C1 C2 C3 C4 C5 C6 C7 C8 | >= 16V | 0603 | 81-GRM1885C1H220GA1J | ||
| Capacitor | 20 | 100nF | C9 C10 C11 C12 C13 C14 C15 C16 C17 C18 C19 C20 C21 C22 C23 C24 C25 C26 C27 C28 | >= 16V | 0603 | 710-885012206071 | ||
| Electrolytic capacitor | 2 | 10uF | C29 C30 | >= 25V | Panasonic B | 667-EEE-1EA100WR | ||
| Resistor | 4 | 180 | R73 R74 R75 R76 | 0603 | 603-RT0603FRE07180RL | ⚠For jack lights | ||
| Resistor | 16 | 1k | R4 R6 R12 R14 R20 R22 R28 R30 R36 R38 R44 R46 R52 R54 R60 R62 | 0603 | 603-RT0603FRE071KL | |||
| Resistor | 1 | 10k | R63 | 0603 | 603-RT0603FRE0710KL | |||
| Resistor 0.1% thin film | 55 | 100k | R1 R2 R3 R5 R7 R8 R9 R10 R11 R13 R15 R16 R17 R18 R19 R21 R23 R24 R25 R26 R27 R29 R31 R32 R33 R34 R35 R37 R39 R40 R41 R42 R43 R45 R47 R48 R49 R50 R51 R53 R55 R56 R57 R58 R59 R61 R64 R65 R66 R67 R68 R69 R70 R71 R72 | 0603 | 603-RT0603BRD07100KL | |||
| SMD LED | 16 | 1206 | 604-APTR3216YC | ⚠For jack lights | ||||
| Other parts: | ||||||||
| Potentiometer (T18 shaft) | 8 | 10k B | POT1 POT2 POT3 POT4 POT5 POT6 POT7 POT8 | ⚠https://www.thonk.co.uk/shop/alpha-9mm-pots-vertical-t18/ | ||||
| Micro knobs | 8 | ⚠https://www.thonk.co.uk/shop/micro-knobs/ | ||||||
| 3mm bicolor LED (2 terminal) | 8 | L1 L2 L3 L4 L5 L6 L7 L8 | 604-WP937EGW | |||||
| Submini SPDT switch | 10 | ON-ON | 612-500ASSP1M2QE | |||||
| 1x2 Male header | 1 | |||||||
| 2x5 Male header | 1 | 649-67997-410HLF | ||||||
| Thonkiconn Jack | 16 | J1 J2 J3 J4 J5 J6 | ⚠https://www.thonk.co.uk/shop/3-5mm-jacks/ | |||||
| Jumper | 1 | 855-M7567-05 |
