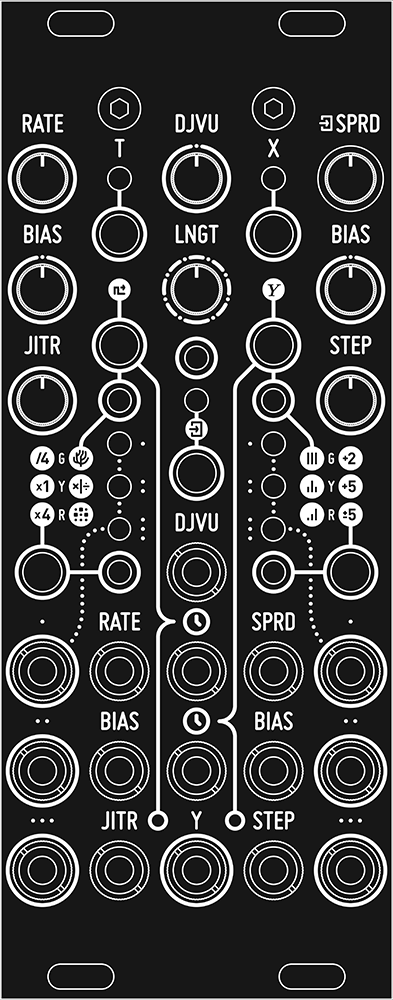

cara

PCB V1.2

INFO

CHANGELOG / NOTES

  • Initial release

submit a photo of your build!

Maximum file size: 3Mb

By submitting a photo you accept that the photo can be published on the Antumbra Instagram page with your profile tagged (if handle is provided) or the Antumbra website

Name:Qty:Value:Index:Specs:Package:Mouser reference:Note:
Brain board
SMD parts:
Resistor, 1%, 100mW4100R2 R3 R7 R80603
Resistor, 1%, 100mW11kR680603
Resistor, 1%, 100mW110kR60603
Resistor, 1%, 100mW733kR39 R40 R41 R42 R57 R58 R590603
Resistor, 1%, 100mW7200kR28 R29 R30 R31 R70 R71 R720603
Capacitor, ceramic220pFC4 C6>=25V, C0G, <= 5%0603
Capacitor, ceramic2470pFC31 C41>=25V, C0G, <= 5%0603
Capacitor, ceramic54.7nFC30 C32 C33 C40 C42>=50V, X7R, <= 10%0603
Capacitor, ceramic11100nFC1 C7 C9 C12 C13 C16 C19 C21 C26 C46 C47>=25V, X5R0603
Capacitor, ceramic2470nFC25 C52>=25V, X5R0603
Capacitor, ceramic32.2uFC10 C15 C20>=25V, X5R0805
Capacitor, ceramic322uFC3 C5 C14>=25V, X5R1206
Capacitor, electrolytic522uFC2 C8 C11 C17 C18>=25VPanasonic C (5mm)
Inductor133uFL10805
Crystal18MHzQ1<= 20ppm6mm x 3.6mm
1N5819HW diode2D1 D2SOD123
EMI Filter Bead3F1 F2 F30603
LD2981ABU33 LDO regulator13.3VIC3SOT89-3
LM4040 Shunt Vref110VIC8C grade (0.5%, 100ppm)SOT23
STM32F405RGT61IC2TQFP64
DAC8164ICPW1IC4TSSOP16
MCP6004 quad op-amp R2R IO2IC5 IC6TSSOP14
Other parts:
2x5, 2.54mm pitch male header1
2x5 male header, 1.27mm pitch1
DC-DC converter R-78E3.3-0.51IC13.3V, 500mA
Control board
SMD parts:
Resistor, 1%, 100mW239R1 R50603
Resistor, 1%, 100mW7180R2 R3 R6 R7 R82 R83 R840603
Resistor, 1%, 100mW4680R78 R79 R80 R810603
Resistor, 1%, 200mW71kR45 R46 R62 R63 R85 R86 R870603
Resistor, 1%, 100mW51.5kR10 R12 R17 R18 R360603
Resistor, 1%, 100mW42.2kR9 R11 R15 R190603
Resistor, 1%, 100mW510kR22 R23 R55 R56 R670603
Resistor, 1%, 100mW423.7kR47 R48 R53 R540603
Resistor, 1%, 100mW339kR49 R50 R750603
Resistor, 1%, 100mW356kR51 R52 R690603
Resistor, 1%, 100mW18100kR24 R25 R26 R27 R32 R33 R34 R35 R43 R44 R60 R61 R64 R65 R66 R73 R76 R770603
Resistor, 1%, 100mW1150kR740603
Capacitor, ceramic447pFC34 C35 C43 C44>= 25V, C0G, <= 5%0603
Capacitor, ceramic13100nFC8 C17 C18 C24 C28 C29 C36 C37 C38 C39 C48 C49 C50>= 25V, X5R0603
Capacitor, ceramic1470nFC51>= 25V, X5R0603
Ceradiode7C45 C53 C54 C55 C56 C57 C580603
1N4148 silicon diode2D4 D5SOD123
NPN transistor MMBT39042Q2 Q3SOT23
BAT54S diode1D3SOT23
LM324 quad op-amp1IC9TSSOP14
OPA4171 quad op-amp R2R IO1IC7TSSOP14
TL074 quad op-amp1IC10TSSOP14
Other parts:
Tall trimmer potentiometer8B10kR4 R13 R14 R16 R20 R21 R37 R38https://www.thonk.co.uk/product-category/parts/pot/9mm/9mm-trimmer-pots/
⚠from Thonk
LED, Amber2L5 L6
LED, Red/Green, 2 terminals7L7 L8 L9 L10 L11 L12 L13
LED, Red/Green, 3 terminals, common K5LED1 LED2 LED3 LED4 LED5604-WP115VEGW
Switch, 6mm7SW1 SW2 SW3 SW4 SW5 SW6 SW7612-TL1105SP-250
Cap for switch7612-1R-BK
Thonkiconn Jack16J1 J2 J3 J4 J5 J6 J7 J8 J9 J10 J11 J12 J13 J14 J15 J16https://www.thonk.co.uk/shop/thonkiconn/
⚠from Thonk
M3 10mm female-female standoff2
M3 10mm male-female standoff2
M3 6mm screw4
SMD LED161206859-LTST-C150YKT
⚠for jack lights
1x53, 2.54mm pitch male header1
1x53, 2.54mm pitch female header1
