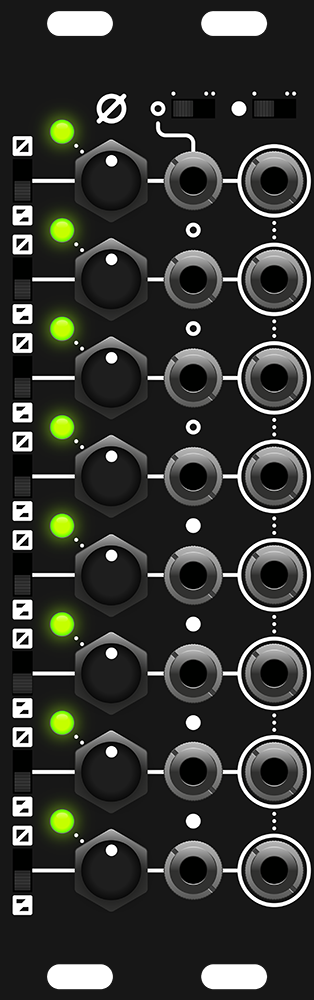

ATN8

OCTAL SIGNAL PROCESSOR

ATN8 is an eight channel signal processor. It can be used as an attenuator, attenuverter, offset generator, mixer and CV source. A bicolor LED accompanies each channel to provide visual feedback of the output level. Each channel is normaled to the next one so it can be used as a mixer as well. If there's no input on a channel, a selectable 5 or 10V is normaled to the input, these can be selected in two groups of four with the switches on top. There are switches for each channel to select between unipolar or bipolar modes.

Coming soon!

TECHNICAL SPECS

CURRENT DRAW:

◦ +12V:

133mA

◦ -12V:

126mA

◦ +5V:

0mA

DIMENSIONS:

◦ WIDTH:

8HP

◦ DEPTH:

20mm

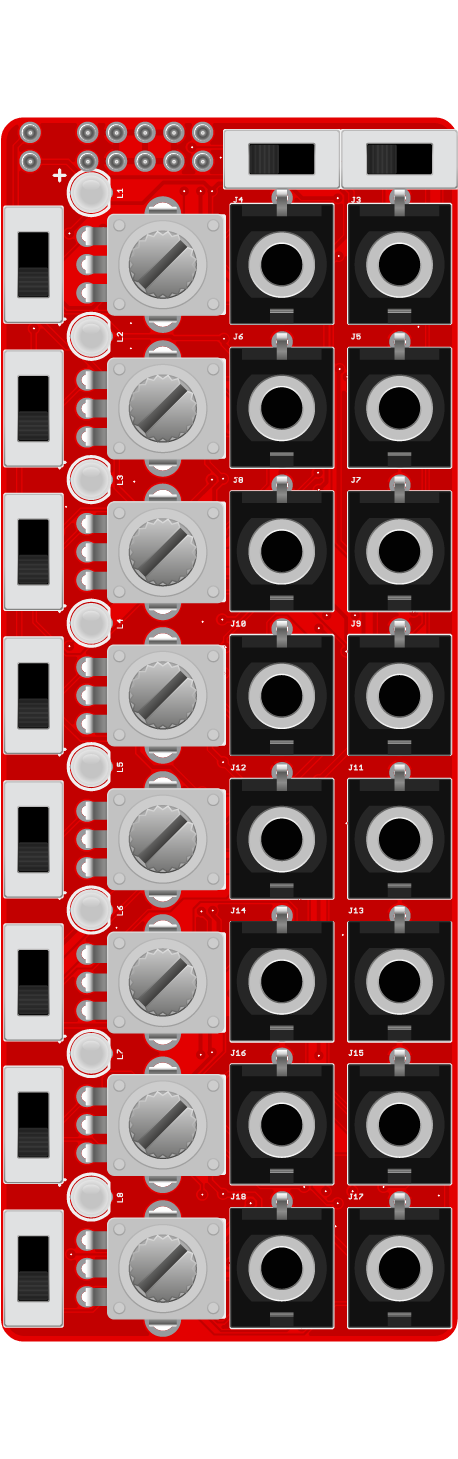

BUILD DIFFICULTY: MEDIUM

  • Dense
  • TSSOP package ICs
