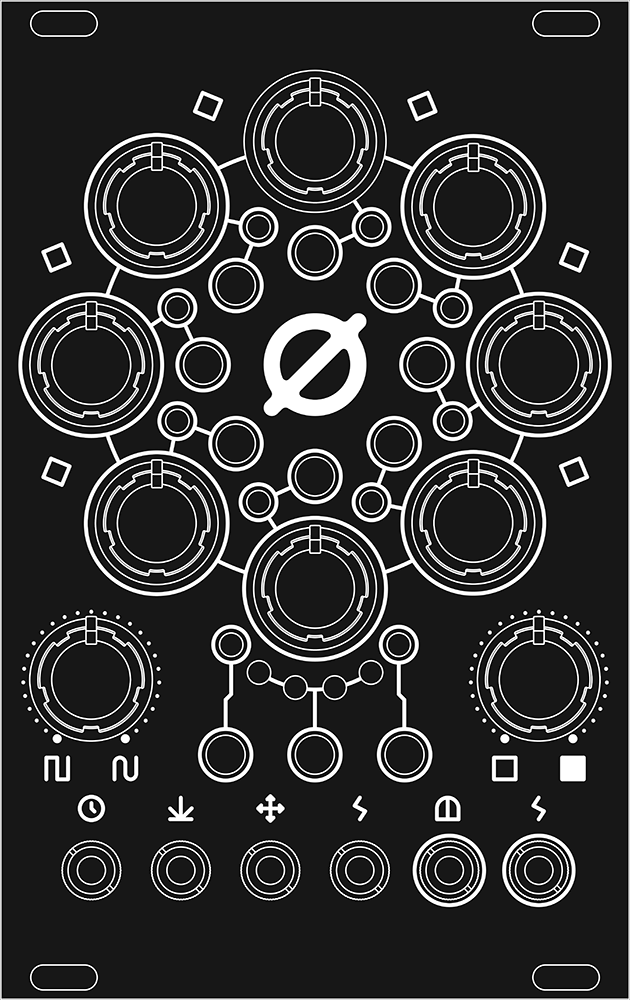

| Name: | Qty: | Value: | Index: | Specs: | Package: | Mouser reference: | Note: | |
|---|---|---|---|---|---|---|---|---|
| SMD parts: | ||||||||
| Atmega 328P-AU microcontroller | 1 | U10 | TQFP-32 | 556-ATMEGA328P-AU | ||||
| 16MHZ crystal | 1 | 16MHZ | Q3 | HC-49/S | 549-CY16BPSMD | |||
| 1n4148 diode | 8 | D1 D2 D3 D4 D5 D6 D7 D8 | SOD-123 | 621-1N4148W-F | ||||
| 1n5819 diode | 2 | D9 D10 | SOD-123 | 621-1N5819HW-F | ||||
| L7805 5V voltage regulator | 1 | U8 | TO-252 | 511-L7805CDT-TR | ||||
| TL072CD dual op-amp | 1 | U7 | SOIC-8 | 595-TL072CD | ||||
| MCP6002 dual op-amp | 1 | U11 | SOIC-8 | 579-MCP6002-I/SN | ||||
| SN74HC595 shift register | 3 | U1 U3 U6 | SOIC-16 | 595-SN74HC595DR | ||||
| CD4021 shift register | 1 | U2 | SOIC-16 | 595-CD4021BM | ||||
| CD4066 quad analog switch | 2 | U4 U5 | SOIC-14 | 595-CD4066BM | ||||
| MMBT3904 NPN transistor | 2 | Q1 Q2 | SOT23-3 | 512-MMBT3904 | ||||
| LM4040 5V voltage reference | 1 | U9 | SOT23-3 | 595-LM4040C50IDBZR | ||||
| Capacitor | 2 | 10nF | C10 C13 | >= 16V | 0603 | 81-GRM18R71H103JA01D | ||
| Capacitor | 9 | 100nF | C1 C7 C8 C9 C14 C15 C16 C17 C18 | >= 16V | 0603 | 81-GRM188R71E104JA1J | ||
| Capacitor | 1 | 470nF | C5 | >= 16V | 0603 | 81-GRM18F51C474ZA01J | ||
| Capacitor | 2 | 22pF | C11 C12 | <= 2% >= 25V | 0603 | 81-GRM1885C1H220GA1J | ||
| Electrolytic capacitor | 4 | 10uF | C2 C3 C4 C6 | >= 25V | Panasonic B | 667-EEE-1EA100WR | ||
| Resistor | 2 | 100 | R19 R21 | 0603 | 603-RT0603FRE07100RL | |||
| Resistor | 2 | 270 | R42 R52 | 0603 | 603-RT0603FRE07270RL | ⚠Jack lights resistors | ||
| Resistor | 31 | 470 | R1 R2 R3 R4 R5 R6 R7 R8 R9 R10 R11 R12 R13 R14 R15 R16 R17 R18 R20 R23 R26 R27 R28 R29 R30 R33 R34 R35 R36 R38 R39 | 0603 | 603-RT0603FRE07470RL | |||
| Resistor | 3 | 1k | R22 R50 R51 | 0603 | 603-RT0603FRE071KL | |||
| Resistor | 4 | 10k | R31 R32 R37 R43 | 0603 | 603-RT0603FRE1310KL | |||
| Resistor | 10 | 100k | R24 R25 R40 R41 R44 R45 R46 R47 R48 R49 | 0603 | 603-RT0603BRB07100KL | |||
| SMD LED | 6 | 1206 | 630-HSMA-C150 | ⚠For jack lights | ||||
| Other parts: | ||||||||
| Potentiometer | 10 | 10k B | POT1 POT2 POT3 POT4 POT5 POT6 POT7 POT8 POT9 POT10 | 858-P0915N-FC15BR10K | ||||
| Switch cap | 11 | 612-1R-BK | ||||||
| Tactile switch | 11 | SW1 SW2 SW3 SW4 SW5 SW6 SW7 SW8 SW9 SW10 SW11 | 612-TL1105SP-250 | |||||
| 1x3 Male header | 2 | 571-4-103321-5 | ||||||
| 2x3 Male header | 1 | 649-67996-406HLF | ||||||
| 2x5 Male header | 1 | 649-67997-410HLF | ||||||
| Thonkiconn Jack | 6 | J1 J2 J3 J4 J5 J6 | ⚠https://www.thonk.co.uk/shop/3-5mm-jacks/ | |||||
| 3mm single color LED | 6 | L9 L10 L11 L12 L13 L14 | 604-WP132XND | |||||
| 3mm red/green LED | 8 | L1 L2 L3 L4 L5 L6 L7 L8 | 604-WP115VEGW |
